Quick Answer

If a Thermador remote blower trips the circuit breaker when the vent hood is turned on, the problem may be inside the exterior blower system rather than the hood itself. A failed blower motor, bad capacitor, damaged wiring, or moisture-related deterioration can create an electrical fault.

On a recent service call, we found two separate problems in the same Thermador remote blower system: one blower motor had failed completely, while the second motor was still good but had a failed capacitor. After replacing the failed motor and capacitor, cleaning and servicing the second motor, and testing the system, both blowers returned to normal operation and the breaker stopped tripping.

What Is a Remote Blower on a Range Hood?

Many homeowners are familiar with a traditional range hood where the blower motor is installed directly inside the hood above the cooktop. A remote blower, sometimes called an external blower, works differently.

Instead of keeping the main blower motor inside the kitchen, the blower can be installed remotely—often on an exterior wall or roof. Thermador offers external blower configurations designed for this type of installation.

The range hood controls the ventilation system from inside the kitchen, while the remote blower does the heavy work of moving cooking smoke, heat, grease particles, and odors through the ductwork and outside the home.

Why Use a Remote Blower?

One of the biggest advantages is less noise in the kitchen. Moving the blower motor farther away from the cooking area can make a powerful ventilation system noticeably more comfortable to use.

Other benefits can include:

• Strong ventilation for larger professional-style ranges and cooktops
• Less blower noise directly above the cooking area
• More flexibility when designing the duct and ventilation system
• Powerful removal of smoke, heat, steam, and cooking odors
• A cleaner, quieter kitchen environment when the system is properly designed

For homeowners with large Thermador ranges or other professional-style cooking equipment, a properly operating ventilation system is especially important.

Our Recent Thermador Remote Blower Repair

This service call started with a simple complaint:

Every time the customer turned on the vent hood, the circuit breaker tripped. Neither remote blower motor would run.

A breaker that trips repeatedly should never simply be reset over and over. The breaker is responding to an electrical problem somewhere in the circuit, and the cause needs to be diagnosed.

Because this system used an exterior remote blower, troubleshooting required access to the blower assembly outside the house.

After opening the unit and performing a complete electrical and mechanical diagnosis, we discovered something interesting.

The two motors had different failures.

Blower Motor #1: Failed Motor

The first blower motor itself had failed.

This motor needed to be replaced as an assembly. A failing motor can draw abnormal current or develop an internal electrical fault, which can contribute to breaker-tripping problems.

Blower Motor #2: Good Motor, Bad Capacitor

The second blower initially appeared to have another motor failure because it wasn’t running either.

But testing showed that the motor itself was still serviceable.

The problem was the motor capacitor.

A capacitor helps the motor start and operate correctly. When it fails, the blower may not start even though the motor itself is still usable.

This is exactly why proper diagnosis matters. Replacing both motors would have been unnecessary.

One motor needed replacement. The other only needed a capacitor.

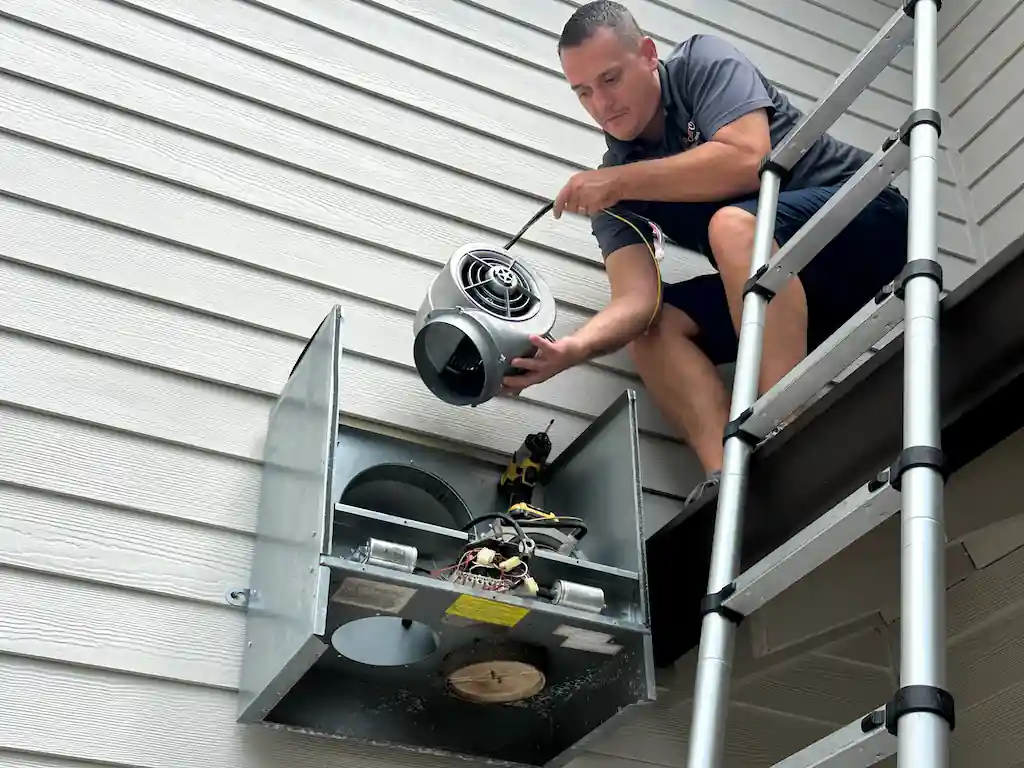

The Repair

We ordered the correct replacement blower motor and capacitor and returned to complete the repair.

We:

• Replaced the failed blower motor
• Replaced the failed capacitor on the second motor
• Inspected the electrical connections and wiring
• Cleaned the existing blower and surrounding area
• Serviced and lubricated the serviceable motor where appropriate for the component
• Reassembled the remote blower
• Tested both blower motors
• Tested the system through the Thermador vent hood controls
• Confirmed the circuit breaker was no longer tripping

After the repair, both blower motors operated normally and the ventilation system worked perfectly again.

Something We Noticed During This Repair

This job also reminded us of something homeowners often overlook:

Exterior range hood blowers need attention too.

Because the blower is outside the kitchen, it’s easy to forget that there is an electric motor, capacitor, wiring, bearings, fan wheel, and other components operating inside that metal enclosure.

The blower may be built for outdoor installation, but that doesn’t mean environmental exposure has no effect on it.

Why Houston Weather Can Be Hard on Exterior Blowers

Here in Greater Houston, outdoor equipment operates in a challenging environment.

We deal with:

• High humidity
• Moisture
• Heavy rain
• Extreme summer heat
• Dust and pollen
• Temperature changes
• Grease and cooking residue traveling through the ventilation system

Over years of operation, these conditions can contribute to corrosion, electrical deterioration, dirty blower wheels, bearing wear, and additional stress on motors and capacitors.

That doesn’t mean every outdoor blower will fail because of Houston’s climate. But from what we see in the field, periodic inspection and maintenance can help identify developing problems before they become complete failures.

How Should a Remote Blower Be Maintained?

Remote blowers shouldn’t be ignored until they stop working.

A professional inspection can include checking the blower assembly for debris and buildup, inspecting wiring and electrical connections, checking the motor and capacitor, listening for bearing or motor noise, inspecting the blower wheel, checking for corrosion or moisture intrusion, and confirming proper airflow.

Not every motor is designed to be lubricated, so don’t automatically add oil or lubricant to a blower motor. Some motors have sealed bearings and require no lubrication. Always follow the manufacturer’s requirements for the specific blower model.

Inside the kitchen, keeping the range hood’s grease filters clean is also important. Excessive grease buildup can restrict airflow and place additional demands on the ventilation system.

Warning Signs Your Remote Blower Needs Attention

Don’t wait for the blower to stop completely. Have the system checked if you notice:

• Circuit breaker trips when the vent hood starts
• Blower doesn’t start
• Blower starts slowly
• Humming without normal airflow
• Grinding, squealing, or rattling sounds
• Reduced suction at the range hood
• Intermittent operation
• Burning or electrical odor
• Unusual vibration
• One blower running while another does not

A breaker that repeatedly trips deserves particular attention because it can indicate an electrical or motor problem.

Don’t Assume a Non-Running Blower Needs a New Motor

This repair is a good example of why we always diagnose before replacing parts.

Both blower motors weren’t running.

It would have been easy to assume:

Two dead blowers = two bad motors.

That wasn’t the case.

One motor was actually bad. The other had a failed capacitor.

Testing the individual components allowed us to repair only what was necessary.

That’s the approach we try to bring to every appliance and ventilation repair: find the actual failure first, then replace what’s needed—not everything connected to it.

Thermador Vent Hood & Remote Blower Repair in Greater Houston

PowerOn Appliance Repair Service repairs Thermador ventilation systems, vent hoods, external blowers, blower motors, capacitors, controls, and related electrical and airflow problems throughout Greater Houston.

If your Thermador vent hood has weak airflow, the remote blower isn’t running, the motor is making unusual noises, or the breaker trips when you turn the hood on, the problem may be repairable without replacing the complete ventilation system.

You can learn more about our Vent Hood Repair service or our Thermador Appliance Repair service.

For additional information about how exterior and inline blower systems work, see Victory Range Hoods’ guide to external blowers and Thermador’s external blower information.

Real repair. Real diagnosis. Real experience from the field.
